Clinical Blended Genome-Exome Sequencing

A combined genome and exome product that supports GWAS and rare variant calling at the clinical level

Blended Genome Exome
Blended Genome Exome

Clinical Blended Genome-Exome (BGE) Sequencing with Broad Clincal Labs

  • Low-cost: starting at $120/sample
  • 28-day turnaround time; no minimum order size
  • High-volume product, projects scaling to the hundreds of thousands (500k sample processing power/year)
  • A clinical-grade whole exome (WES) mixed with a low-coverage PCR-free whole genome (WGS)
  • Clinical-level extractions from blood or saliva is included

Clinical BGE Applications

BGE is being used at large scale for germline gene-disease discovery studies where the low pass genome region is used as an unbiased alternative to microarray genotyping in GWAS applications

This qualitative assay is intended for low pass genome and deeper exome sequencing of single nucleotide variants (SNVs) and small insertions and deletions (InDels) in human genome DNA extracted from saliva and blood samples

Service Overview- Clinical Blended Genome-Exome Sequencing

Product SpecificationsData Deliverables
Mean Genome Coverage:  2–4x (min ≥1x)
Exome Mean Target Coverage: 85–100x (min ≥ 60x)
Percent Exome Bases @ 20x: 95% (min ≥ 90%)
Percent Mapped Bases:  90% (min ≥ 75%)
Percent Exome Callability:  ≥ 95%
Percent Contamination:  1% (max ≤ 2.5%)
Raw data (CRAM files aligned to HG38)
Single sample hard-filtered VCF and gVCF
Technical report

Product Specifications

Mean Genome Coverage:  2-4x (min ≥1x)
Exome Mean Target Coverage: 85-100x (min ≥ 60x)
Percent Exome Bases @ 20x: 95% (min ≥ 90%)
Percent Mapped Bases:  90% (min ≥ 75%)
Percent Exome Callability:  ≥ 95%
Percent Contamination:  1% (max ≤ 2.5%)

Data Deliverables

Raw data (CRAM files aligned to HG38)
Single sample hard-filtered VCF and gVCF
Technical report

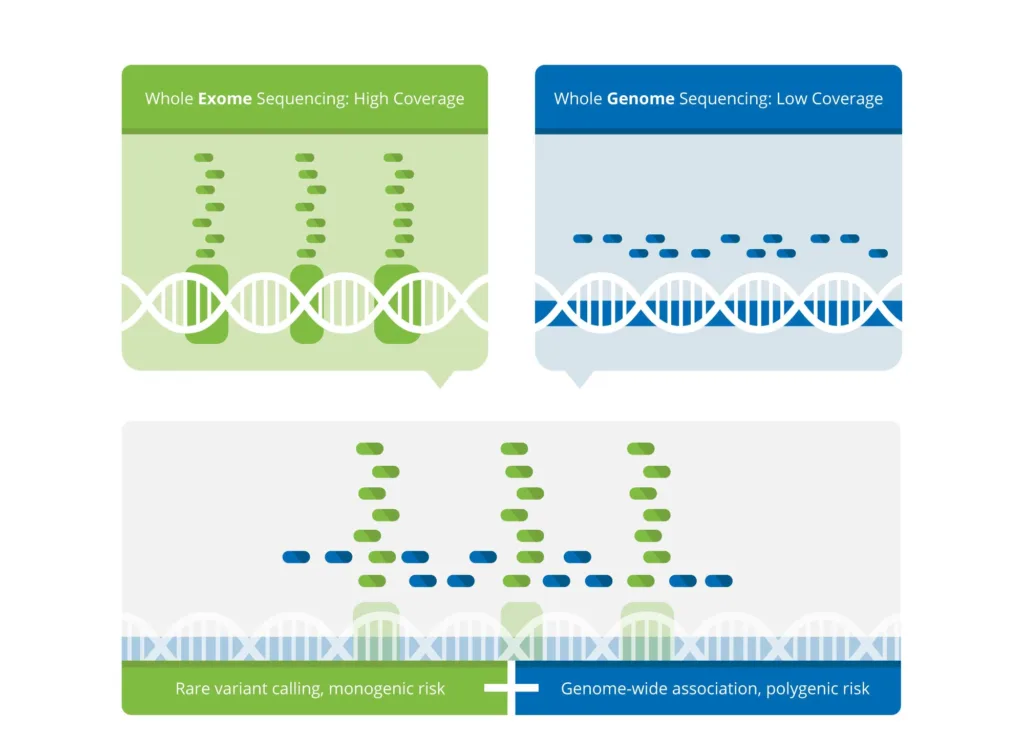

Blended Genome-Exome Sequencing Methodology

1

From a single sample, a PCR-free whole genome library is constructed and a sub-aliquot is taken through PCR amplification and exome selection.

2

Genome and exome libraries are blended together for downstream processing.

3

The blended sample is sequenced on the Illumina®⁠⁠ NovaSeq X Plus platform, and a single CRAM file is generated containing low-coverage (1–3x) WGS and clinical-grade (~85x) WES data.

4

Alignment and variant calling are performed using the Illumina DRAGEN platform.

Applications

  • Global population genome-wide association studies and polygenic risk score determination
  • Rare variant calling and monogenic risk determination
  • Study of diverse populations and disease characteristics
  • A more financially feasible alternative to WGS for large volume studies
  • Population health studies
  • Polygenic disease research
Applications
Applications

Project Workflow- Blended Genome-Exome Sequencing

Project onboarding

Project onboarding
(contracting if required)

Regulatory Review
Quoting
Sample Kits

Sample intake and QC

Sample intake and QC
(extraction optional)

Inputs:

Blood
Saliva
DNA

Library Receipt at BCL

Library construction

One sample generates a whole exome and PCR-free whole genome library

The two libraries are pooled together to hit target coverage levels

Sequencing

Sequencing

Sequencing on Illumina⁠®⁠ NovaSeq X Plus

Data delivery

Data and report delivery
(bioinformatic analysis optional)

Data (CRAM, VCF) delivered via secure cloud based platform
